Actions

Actions are the response instructions to the events that are triggered by the user. Each action is a set of instructions that will be executed.

Schema

Event actions

Event actions are the instructions that will be executed for a non-knob event. For example, a button press.

MSFS

{
  "template": {
    "screen_lights": {
      "name": "Lights",
      "canvas": {
        "size": {
          "width": 1090,
          "height": 490
        }
      },
      "components": [
        {
          "type": "switch",
          "position": {
            "x": 0,
            "y": 70
          },
          "props": {
            "topText": "LEFT\nOFF",
            "bottomText": "ON",
            "clickAreas": 2,
            "storeKey": "ldgLeftLightPosition",
            "onPressEvents": [
              "ldgLeftLightSwitch"
            ]
          }
        }
      ]
    }
  },
  "action": {
    "event": {
      "ldgLeftLightSwitch0": [
        {
          "setSimVar": ["K:LANDING_LIGHTS_TOGGLE", "numeric", 2]
        }
      ],
      "ldgLeftLightSwitch1": [
        {
          "setSimVar": ["K:LANDING_LIGHTS_TOGGLE", "numeric", 0]
        }
      ]
    }
  }
}

Note, that each Switch component has two onPressEvents - ldgLeftLightSwitch0 and ldgLeftLightSwitch1 - it depends on the target position of the switch.

Other events, like buttons press, can be handled in the same way.

{
  "template": {
    "screen_lights": {
      "name": "Lights",
      "canvas": {
        "size": {
          "width": 1090,
          "height": 490
        }
      },
      "components": [
        {
          "type": "button",
          "position": {
            "x": 940,
            "y": 50
          },
          "props": {
            "title": {
              "value": [
                "WING"
              ]
            },
            "storeKey": "wingStatus",
            "onPressEvents": [
              "wingButtonClick"
            ]
          }
        }
      ]
    }
  },
  "action": {
    "event": {
      "wingButtonClick": {
        "events": [
          {
            "setSimVar": ["K:TOGGLE_WING_LIGHTS", "numeric", 1]
          }
        ]
      }
    }
  }
}

X-Plane

X-Plane actions are similar, the only difference is we send pure array of strings instead of "setSimVar" object.

{
  "action": {
    "headingButtonClick": {
      "events": ["laminar/B738/autopilot/hdg_sel_press"]
    }
  }
}

Knob actions

Knob actions are similar to event actions, but they are triggered by the knob rotation.

The property name should correspond to the slotName of the knob component.

{
  "action": {
    "knob": {
      "com1": [
        {
          "inputEvents": ["lowerKnobClockwise"],
          "events": [
            {
              "setSimVar": ["K:COM_RADIO_WHOLE_INC", "bool", true]
            }
          ]
        },
        {
          "inputEvents": ["lowerKnobCounterclockwise"],
          "events": [
            {
              "setSimVar": ["K:COM_RADIO_WHOLE_DEC", "bool", true]
            }
          ]
        },
        {
          "inputEvents": ["upperKnobClockwise"],
          "events": [
            {
              "setSimVar": ["K:COM_RADIO_FRACT_INC", "bool", true]
            }
          ]
        },
        {
          "inputEvents": ["upperKnobCounterclockwise"],
          "events": [
            {
              "setSimVar": ["K:COM_RADIO_FRACT_DEC", "bool", true]
            }
          ]
        },
        {
          "inputEvents": ["push", "pull"],
          "events": [
            {
              "setSimVar": ["K:COM1_RADIO_SWAP", "bool", true]
            }
          ]
        }
      ]
    }
  }
}

Input event types:

• lowerKnobClockwise
• lowerKnobCounterclockwise
• upperKnobClockwise
• upperKnobCounterclockwise
• push
• pull

It is important to configure that properly in order to have a proper knob rotation response. If the knob doesn't have the "upper" part (for example C172 autopilot heading knob), include it in the configuration as well, to avoid uses confusion when using physical knobs.

Finding correct simVar or ref

MSFS

There are 2 ways of saving data in the simulator - simVars and actions. SimVars are used to store data, and actions are used to trigger events. SimVars and how to access them are described in the store section.

Unfortunately, finding correct action name is much harder than finding correct SimVar. You can use developer tools in the simulator to find the correct action name. Please remember, that there is no pattern in action names, so you have to find it manually. Each developer may name the action differently.

1. Open developer mode in MSFS settings.
2. In the toolbar at the top of the screen, click on Tools and then Behaviors.
3. Navigate to the Behaviors tab.
4. Search for the component you want to find the action name for.
5. Browse the component code to find the action name.

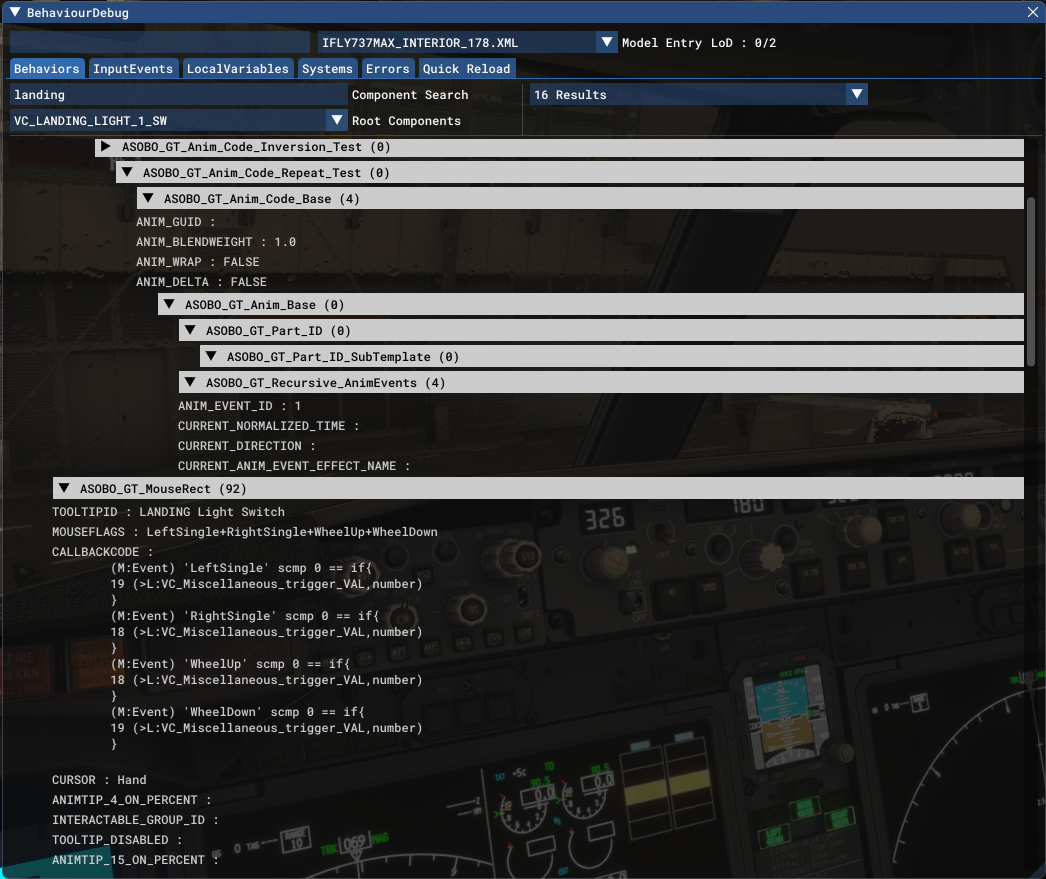

In this example we can see, that L:VC_Miscellaneous_trigger_VAL accepts 19 and 18 values for changing landing lights state.

X-Plane

Searching for proper action names in X-Plane is much easier than in MSFS. You can use the DataRefTool for that.

1. Install the DataRefTool plugin.

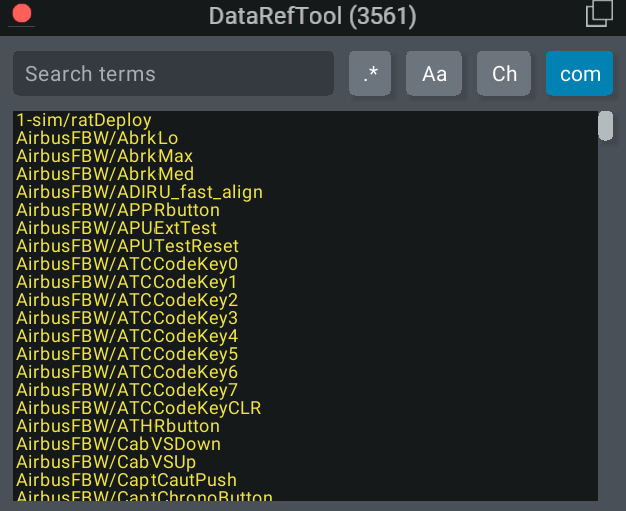

2. Open the plugin in the simulator (Plugins -> DataRefTool -> Search).
3. Search for the action name you need.
